Periodic Audio Magnesium In Ear Monitors with Detachable Cable

The Periodic Audio Magnesium In Ear Monitors with detachable cable.

Moved By Mg

The Mg (Magnesium) IEM utilizes a high magnesium content alloy (96% pure) for the diaphragm material. Magnesium may be the lowest cost IEM in our stable but it by no means a slouch, earning the coveted Top Pick from Stereo Review. High performance, affordable price, extreme comfort make a potent combination.

Magnesium is the least dense of all stable metals. Magnesium is also very high on the stiffness-to-weight ratio, and that is why it’s used in automotive and aerospace applications. These two properties result in a highly efficient, low distortion transducer foundation.

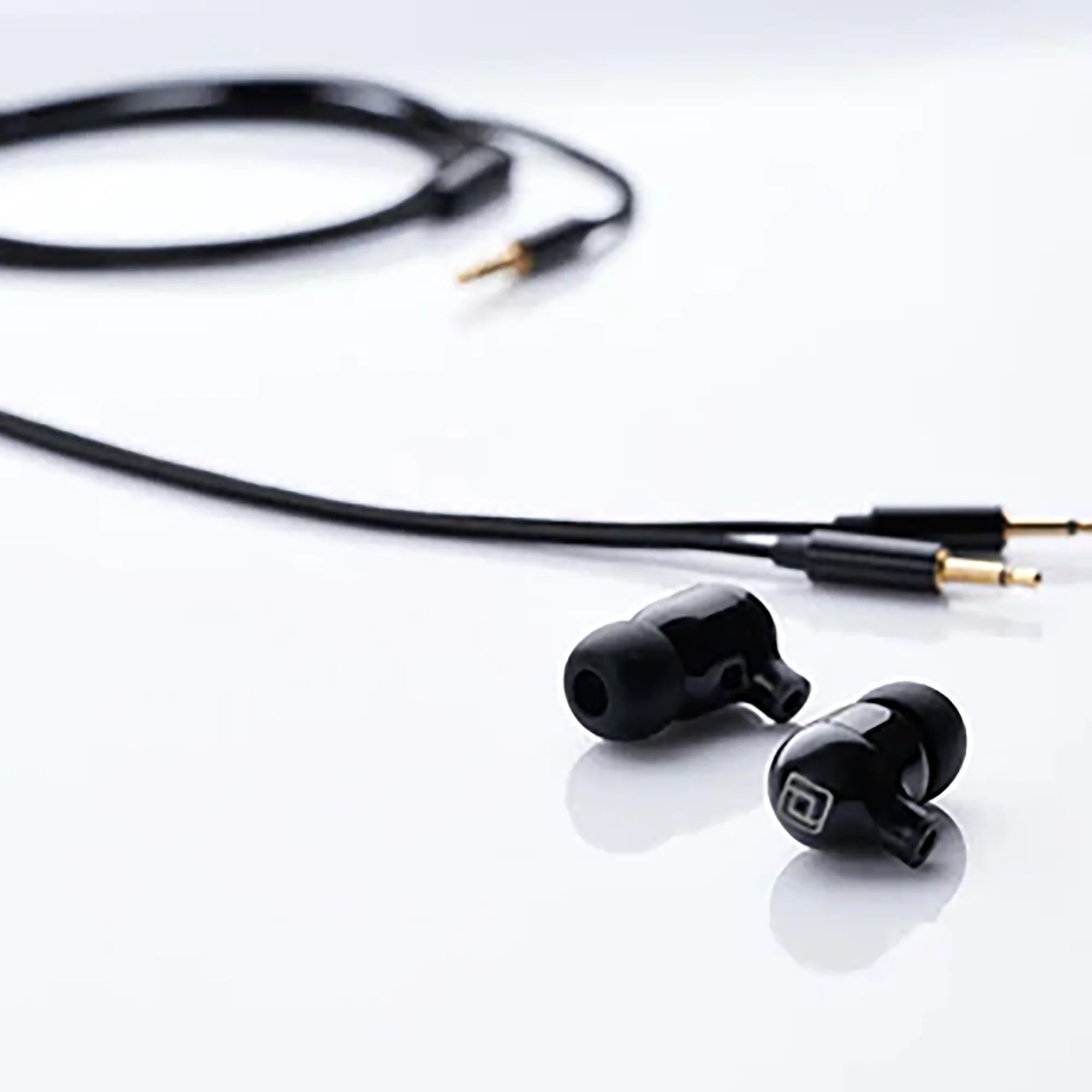

I see a detachable cable? What’s that about?

We have also developed our own 2.5mm jack: the IDEEL connector. This connector is the world’s smallest 2.5mm jack, measuring just 3.6mm across, and a tiny 9.5mm mounting depth. This jack allows us to use the very robust 2.5mm TS plug in our tiny IEMs. No more delicate MMCX or difficult 2 pin plastic connectors needed.

Mechanical Elements

Transducer Diaphragm: 96% pure Magnesium foil

Transducer Surround: PEEK polymer

Transducer Frame: 316 Stainless Steel

Transducer Magnet: N48H Grade Neodymium

Enclosure Body: Tritan™ copolyester

Protective Grille: 316 Stainless Steel

Bonding Compound: Cyanoacrylate Adhesive

Sealant Compound: Polyvinyl Acetate

Mounting Tips: Medical Grade Silicone and Urethanes

Connector: IDEEL 2.5mm TS compatible connector (tip hot, sleeve ground)

All components are Finite Element Analyzed for stress, strain, and durability.
